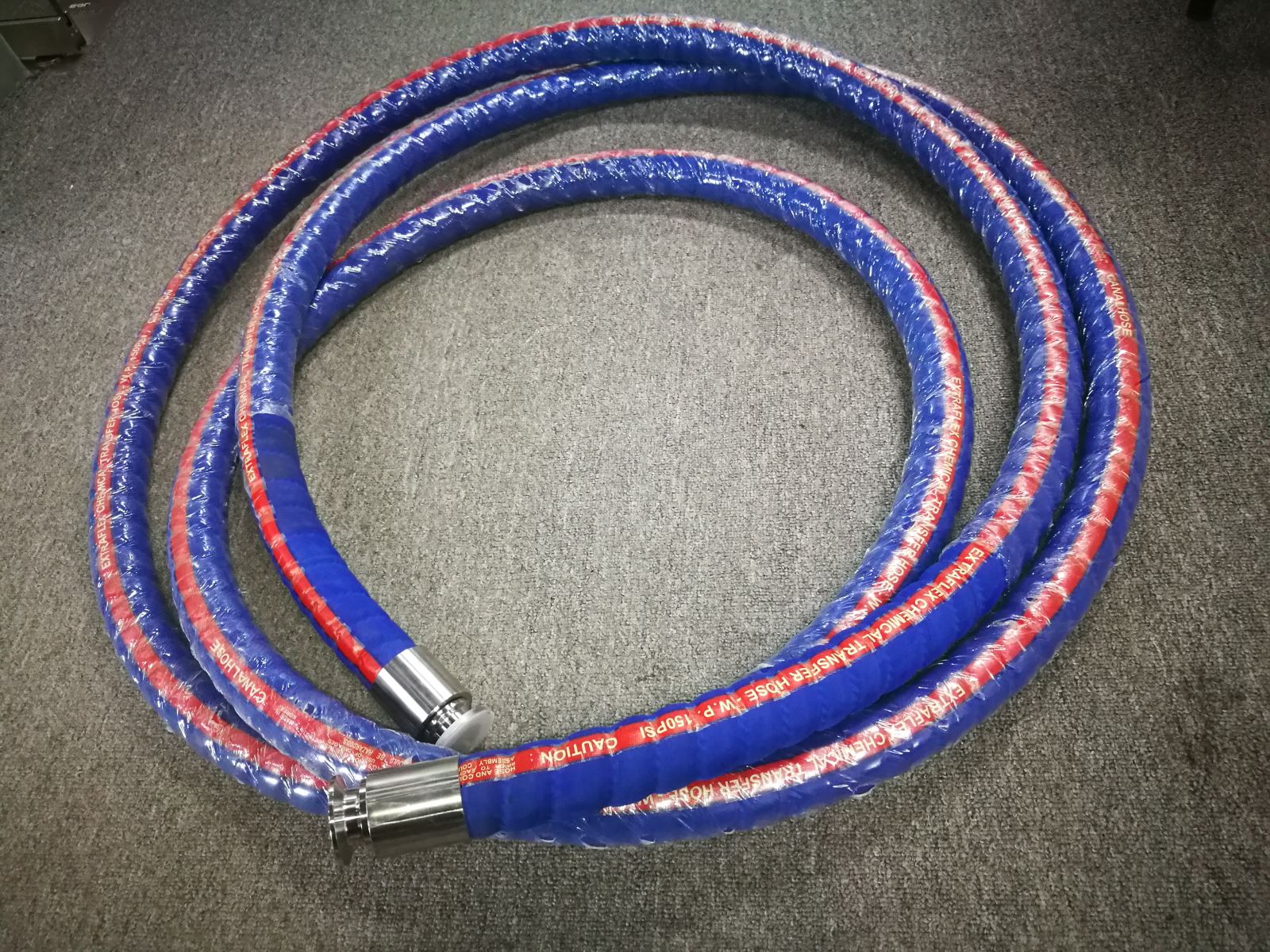

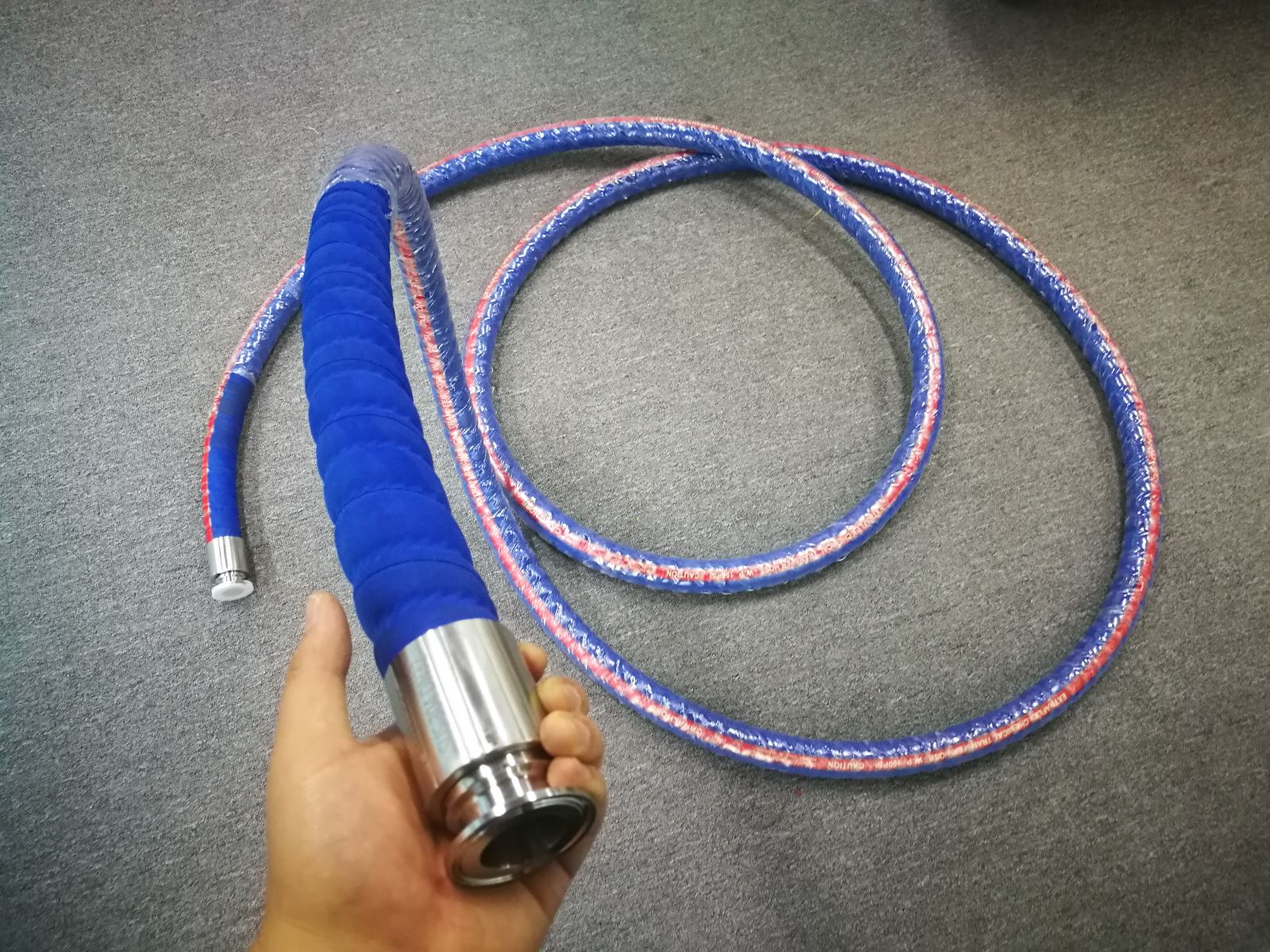

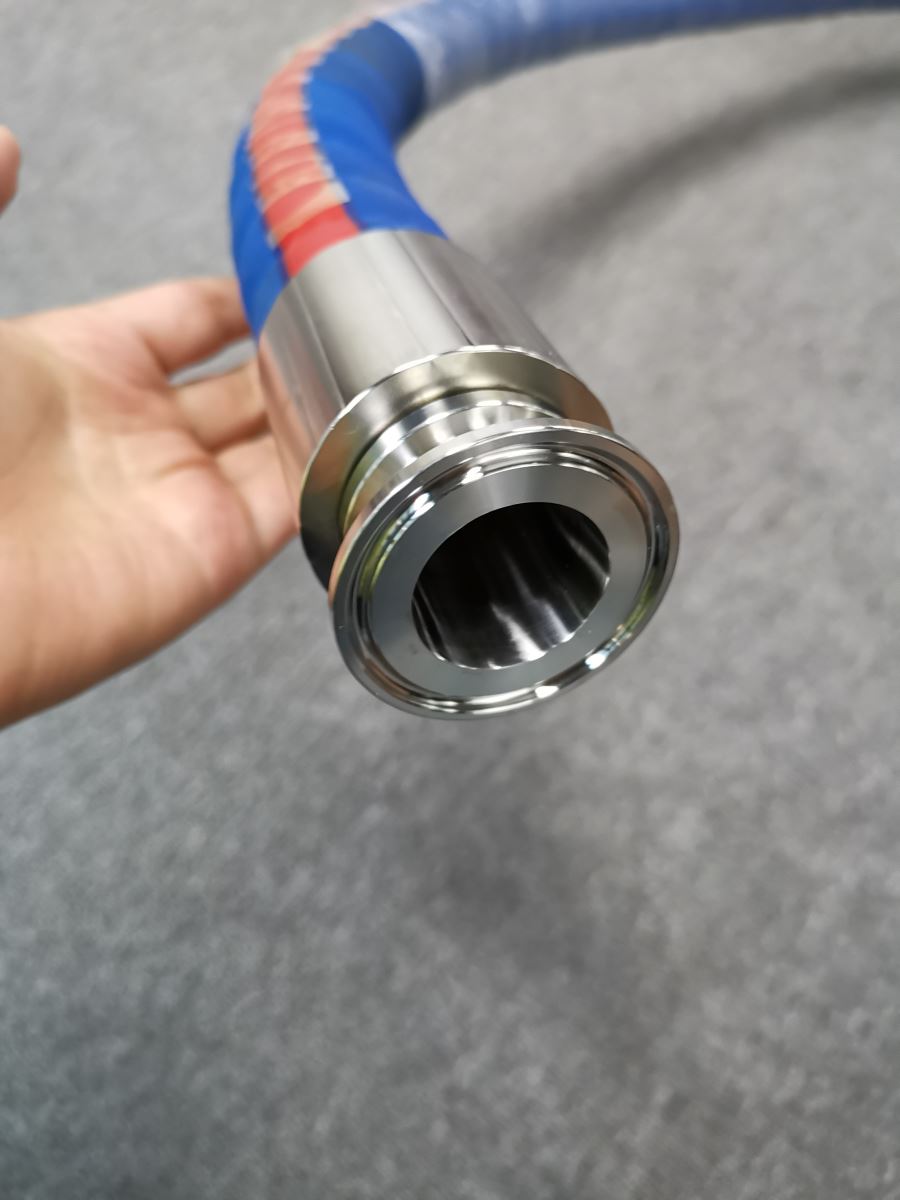

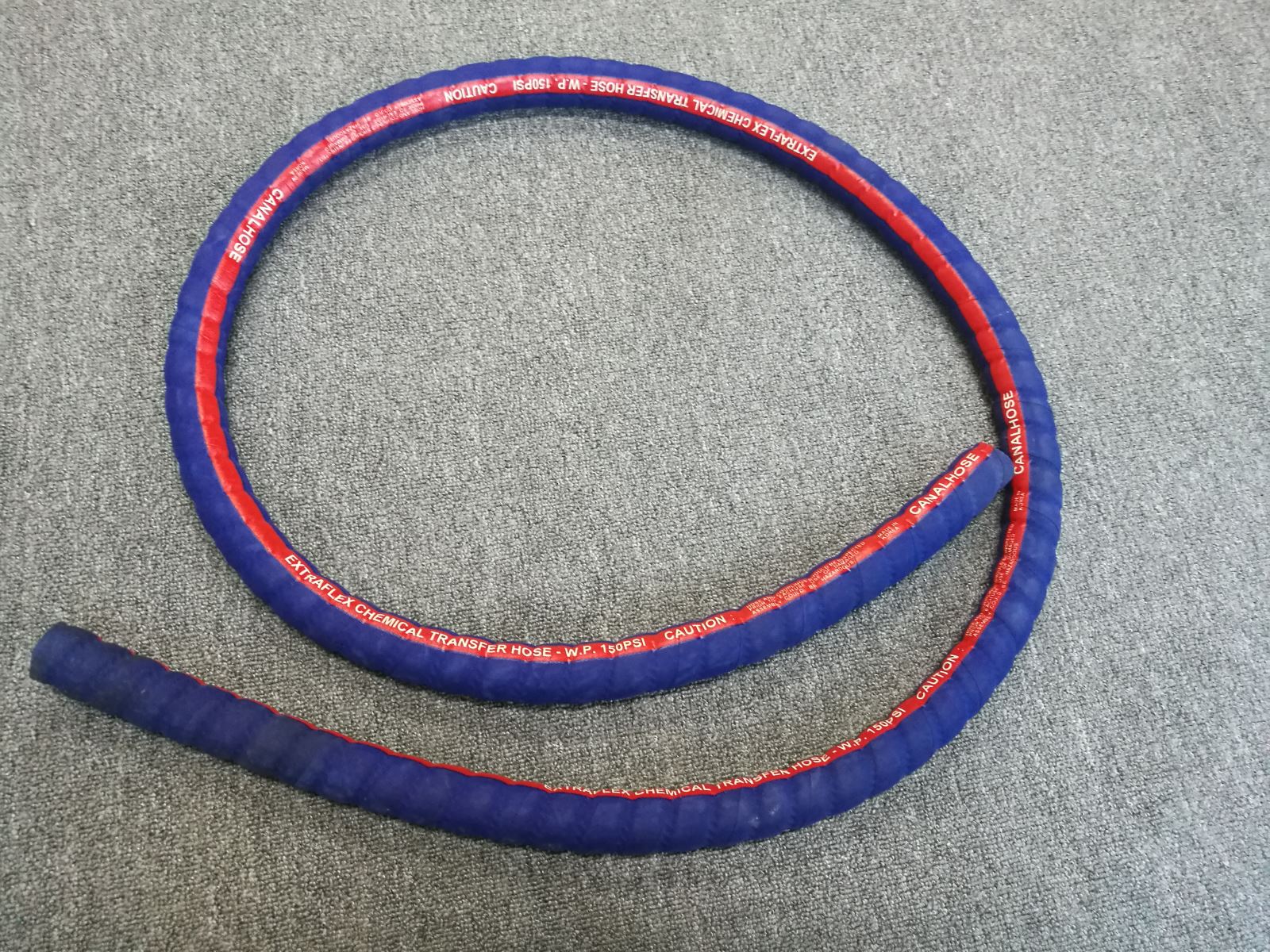

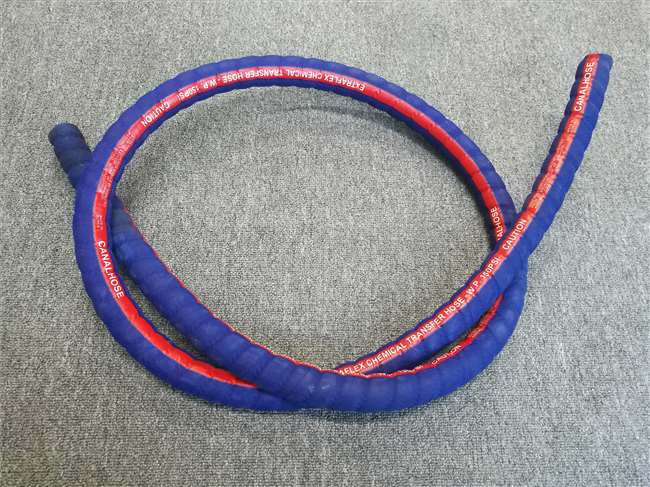

EXTRAFLEX Chemical Transfer Hose
化学品输送软管
基本可满足当今98%的化学品，溶剂和腐蚀性液
体的输送需要，是可在压力或吸引作用要求下
使用的胶管，其弯曲性能特佳。
技术特点：特殊的设计使得EXTRAFLEX的弯曲半径更小，非常柔软。
适用温度：-40℃ to 120℃。
内 胶：超高分子量聚乙烯（UHMWPE）。
增强层：多层织物增强层带2条螺旋钢丝增强，可接地排静电。
外 胶：黑色或蓝色波纹状外型的EPDM合成橡胶。
颜 色：黑色、蓝色。
安全系数： 3：1
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.
Technical advantages: Special design makes the bending radius of EXTRAFLEX smaller, very soft..
Temperature：-40℉ to 248℉
Tube：Ultra High Molecular Weight Polyethylene （UHMWPE）.
Reinforcement：Multiple textile plies with dual helix wire.
Cover：corrugated black or blue EPDM compound.
Colour：black、blue.
Safety factor： 3：1
|
Part No. |
I.D. 内径 |
O.D. 外径 |
W.P. 工作压力 |
Vacuum 耐负压 |
Bend Radius 弯曲半径 |
Std. Length 包装长度 |
||
| inch | mm | mm | psi | bar | bar | mm | M | |
| EF150-12 | 3/4" | 19.05 | 31.6 | 150 | 10 | 0.9 | 89 | 60/40 |
| EF150-16 | 1" | 25.4 | 37.6 | 150 | 10 | 0.9 | 100 | 60/40 |
| EF150-20 | 1-1/4" | 31.8 | 45.0 | 150 | 10 | 0.9 | 130 | 60/40 |
| EF150-24 | 1-1/2" | 38.1 | 51.6 | 150 | 10 | 0.9 | 154 | 60/40 |
| EF150-28 | 1-3/4" | 45.0 | 58.6 | 150 | 10 | 0.9 | 208 | 60/40 |
| EF150-32 | 2" | 50.8 | 64.6 | 150 | 10 | 0.9 | 208 | 60/40 |
| EF150-40 | 2-1/2" | 63.5 | 78.6 | 150 | 10 | 0.9 | 252 | 40/30 |
| EF150-48 | 3" | 76.2 | 91.0 | 150 | 10 | 0.9 | 305 | 40/30 |
| EF150-64 | 4" | 101.6 | 119.4 | 150 | 10 | 0.9 | 407 | 40/30 |
| EF150-80 | 5" | 127 | 148.5 | 150 | 10 | 0.9 | 508 | 30 |
| EF150-96 | 6" | 152.4 | 171.8 | 150 | 10 | 0.9 | 610 | 30 |
| EF150-128 | 8" | 203.2 | 240.3 | 150 | 10 | 0.9 | 813 | 20 |
